Proven performance,
new design
Our new flush-mounted thermostat inserts UTE 4100 and 4800 are true energy-saving wonders: the adjustable time programs and the practical Optimum Start function guarantee optimum use of energy.
UTE 4100 and 4800 - the right solution for every application
UTE 4100 and 4800 are available as room (R), floor (F) or heating/cooling (Rw) variants in 55 x 55 mm format and in the colors RAL 9010 or RAL 9016.
Advantages
Flexible – adjustable time programs
Versatile – heating/cooling application
Energy efficient – Optimum start function
Easy installation – programmable via display menu and with control panel removed
Transparent – energy consumption display
Digital – easy-to-read display with backlighting
R-variants

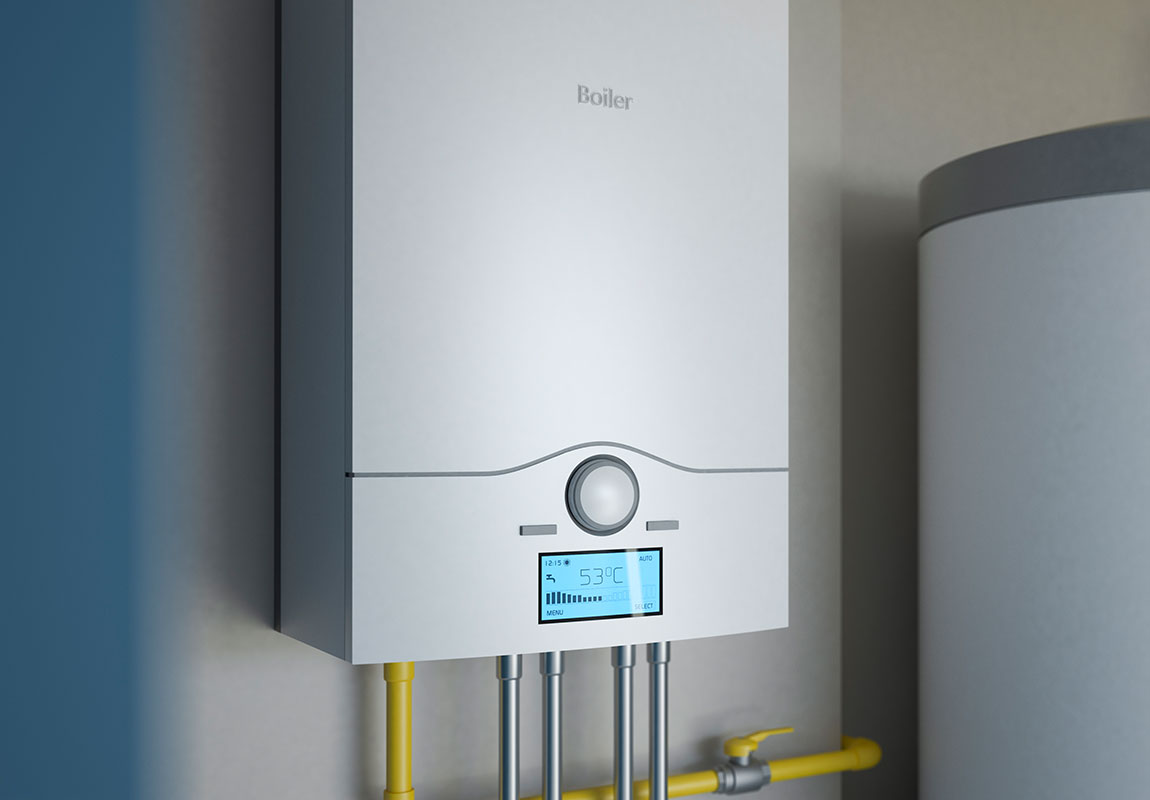

UTE 4100/4800-R controls the room temperature in conjunction with actuators for underfloor and convector heating systems as well as for oil or gas water heaters, circulation pumps, electric heaters and cooling units - a practical all-rounder.

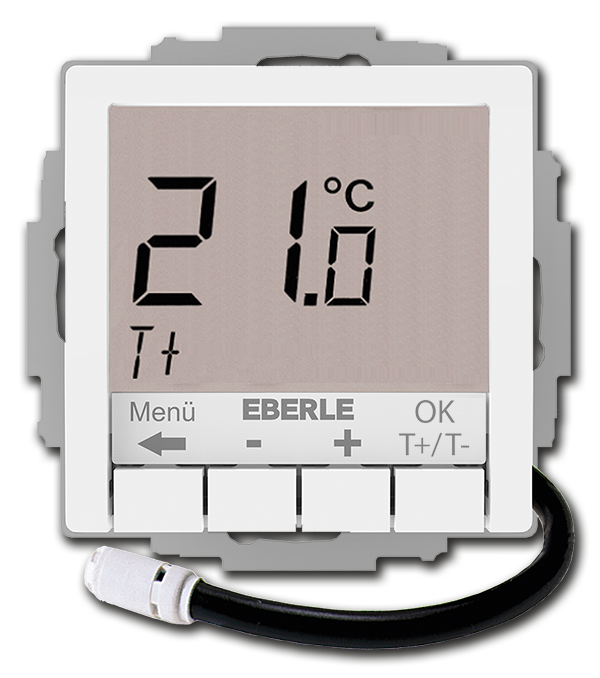

F-variant
UTE 4100/4800-F with integrated remote sensor is the perfect solution for electric underfloor temperature control systems and direct underfloor heating - for a comfortable climate.

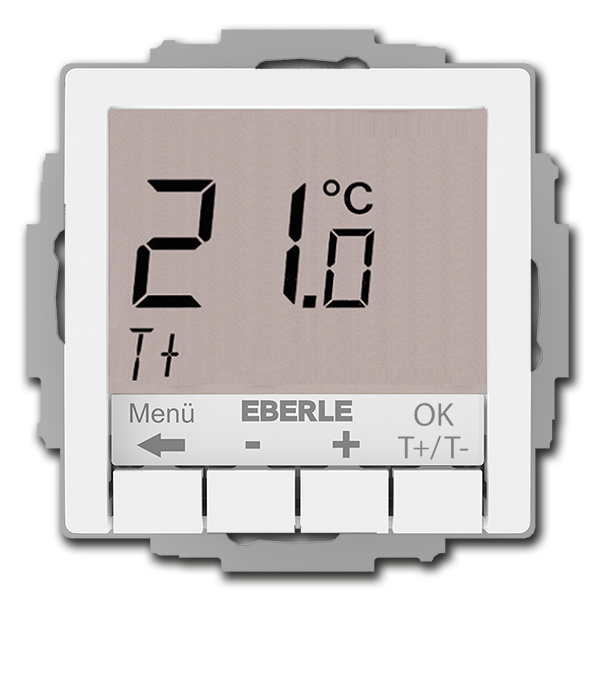

Rw-variant
UTE 4100/4800-Rw in conjunction with actuators for underfloor heating systems controls the room temperature by means of a changeover output (heating/cooling changeover) - ideal in conjunction with a heat pump.
At a glance
UTE 4100 (without clock function)
- Rated voltage: AC 230 V
- White backlighting
- Single-line text display for simplified operation
- Backlighting (off, permanent, only after pressing a button)
- Simple switching between 2 temperatures (e.g. comfort and set-back temperature)
- ECO input for activating a freely adjustable temperature, e.g. for night setback
- Arm chair programming (with removed display unit)
- On-/off-function, press Menu button for 10 seconds
- Short-term timer (party) for changing the temperature by the hour
- Energy consumption display (heating on time * costs) for the last 2 days, last week, month or year (for electric heating)
- Frost protection
- Temperature setting range can be limited
- Temperature measurement adjustable to local needs
- Access protection
- Operating language can be selected
- PWM or ON/OFF
- Adaptation to valves normally open or normally closed
- Valve protection (for R-variant)

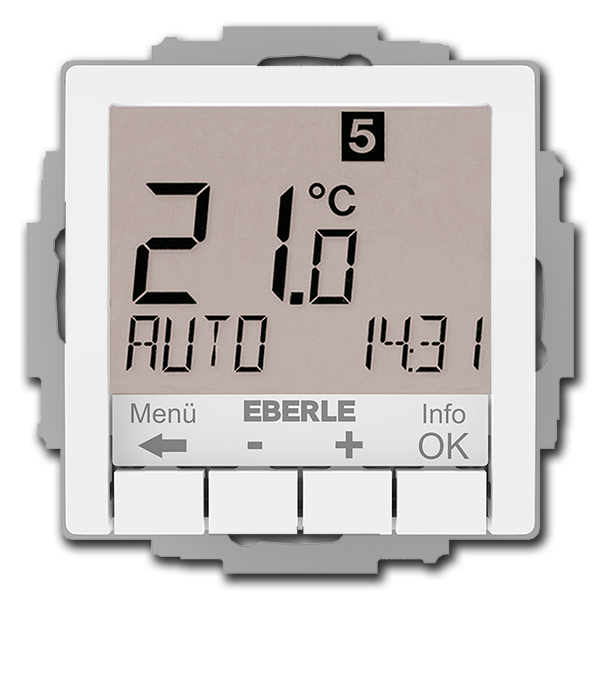

UTE 4800 (with clock function)
- Rated voltage: AC 230 V
- White backlighting
- Single-line text display for self-explanatory operation
- Preset and customizable lifestyle time programs
- Extra daily program (e.g. for public holidays)
- Block formation of switching times: 7-day, 5/2-day, all days the same
- Max. 9 switching times per day
- Optimum start (temperature is reached at the set time)
- Short-term timer (party) for hourly temperature changes
- Switch-on delay, e.g. for burners
- Adaptation to valves normally open (with R variant)
- Valve protection (for R variant)
- Automatic summer/winter time changeover
- Unauthorized protection
- Vacation function with date specification (from / to)
- Frost protection
- PWM or ON/OFF
- Can also be programmed when the control panel is removed Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year
Unbeatable in combination
UTE 4100/4800-Rw combined with the 6-channel terminal strip EV 230 H/K is particularly suitable for heating/cooling. This duo can also be used purely for cooling or heating. The C/O input of the terminal strip supports automatic switching between heating/cooling in conjunction with a heat pump
Terminal strip EV 230 H/K
